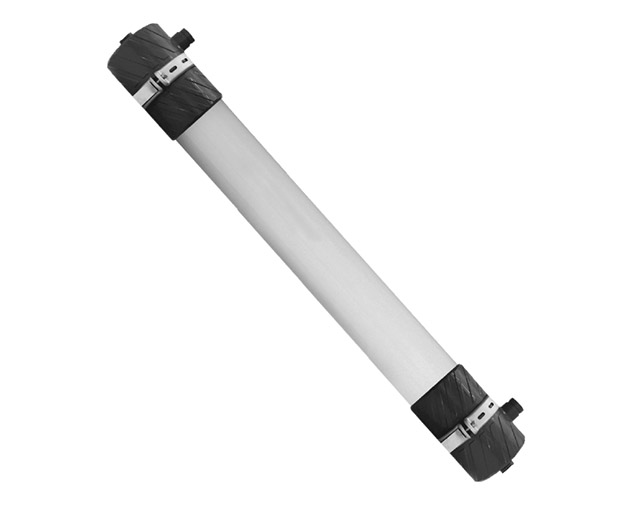

Pressure membrane-LW type-2
PVDF and PM ultrafiltration membrane
Ultrafiltration membrane pore size 0.02 micron
PM Ultrafiltration membrane cost is lower, more resistant to chemical cleaning, pH1-14
Specifications
|
Model |
LW2-0660-F |
LW2-0960-F |
LW2-0980-F |
LW2-0980-PM |
|
External dimensions (mm) (D X L ) |
D1 60×181 0 |
D225x1860 |
D225x2360 |
D225x2360 |
|
Effective membrane area(m²) |
40 |
56 |
77 |
77 |
|
Inner/outer diameter of membrane wire (mm) |
0.8/1 .4 |
0.8/1 .4 |
0.8/1 .4 |
0.8/1 .4 |
|
pH scope |
2-1 2 |
2-1 2 |
2-1 2 |
1-14 |
|
Inflow/brine/ product waterjoggle (mm) |
DN32 |
60.3 (DN50) |
60.3 (DN50) |
60.3 (DN50) |
|
air admissionjoggle (mm) |
DN32 |
G3/8″ |
G3/8″ |
G3/8″ |
|
weight (kg)Specific gravity(full water weight) |
15 (25) |
50 (85) |
160 (1 10) |
160 (1 10) |
