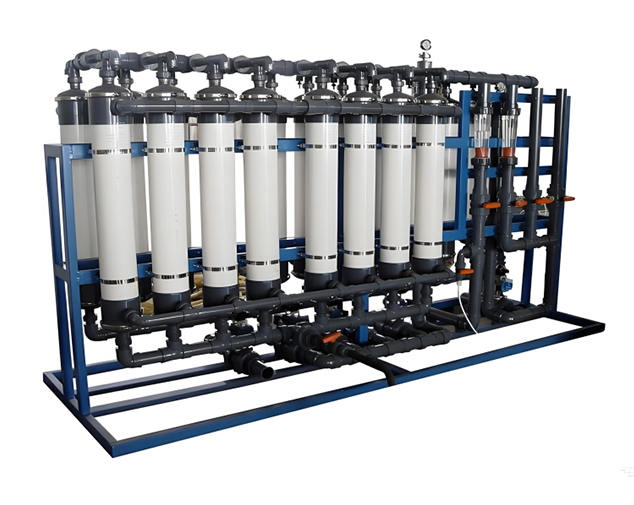

Pressure membrane-LW type
Specifications
|
Model |
LW2-0960-F |
LW2-0980-F |
|
|
membrane properties
|
Membrane materials |
PVDF |
|
|
nominal pore size (µm） |
0.02 |
||
|
Inner/outer diameter of membrane wire (mm) |
1 .00 / 1 .60 |
||
|
Water quality of production water |
1s Turbidity |
||
|
|
sheathing material |
PVC |
|
|
|
Silicone material |
EP resin |
|
|
operational factor
|
Maximum inlet pressure (kPa) |
300 |
|
|
Maximum transmembrane pressure difference (kPa) |
120 |
||
|
Maximum backwash pressure (kPa) |
250 |
||
|
Filtering flux L/(m²·h) |
40-200 |
||
|
Flow range(m ³h) |
1 .6-8 |
2.2-1 1 |
|
|
temperature range (℃) |
0-40 |
||
|
pH scope |
1 -13 |
||
|
Component weight
|
Weight of moist component (kg) |
50 |
≈ 60 |
|
Weight of water filling component(kg) |
85 |
≈110 |
|
