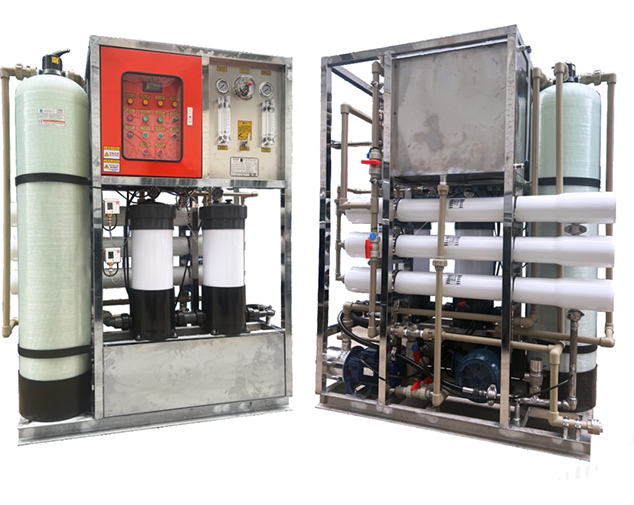

FSHB 10

  • Product Positioning: Designed for a 50-80 person scale, it breaks the 10-ton/day water production capacity for the first time, suitable for regular water supply in small and medium-sized communities.
  • Core Advantages:
  1. Recovery rate increased to 33%, reducing concentrated brine discharge and adapting to islands with tight water resources;
  2. Touchscreen human-machine interface (HMI), supporting real-time viewing of operating data and query of fault records;
  3. Multi-stage filtration system (multi-media + precision filtration), capable of treating seawater with medium turbidity (SDI < 8).
  • Target Applications:Island communities with 50-80 people, medium-sized resorts, coastal industrial parks.
Specifications

 Fresh Water Output:10 tons per day

Size: L * B * H = 1 520mm*800mm*1920mm

Weight:≈800Kg (dry weight)

Power consumption: 5 . 5 KW

 System recovery rate: ≈33%(depending on temperature and water qual. ity)

Powersupply: AC380V/50Hz/3

Efflue nt water qua  ity: in accordance with GB5749-2006 standard for drinking water qual. ity

  Elec: ric piotection class: lP56

  Main components: high pressure pump is imported from Italy AR brand, 316L material
