The FSHB-100 is a compact RO system designed for small to medium-scale freshwater needs. With 100 TPD reliable output, ultra-low 30kW energy consumption, and a minimal footprint (5m L x 2m W x 1.9m H), it is ideal for islands, vessels, remote communities, and small/medium industries. It maintains a stable 99.2% salt rejection for high-quality water (TDS <700ppm) and handles feed water up to 40,000 ppm TDS.
Extremely Compact & Flexible: Skid design with tiny footprint, easily transported via container for space-constrained or mobile use.
Efficient & Low-Cost Operation: 30kW power and 35% recovery rate lower per-ton production costs and offer fast ROI.
Stable Operation & Quality: Industrial-grade components ensure long-term stability in 5-45°C, pH 3-10 conditions, delivering excellent water.
Plug-and-Play, Simple Maintenance: Factory-integrated for quick setup; modular design eases inspection and part replacement.
Global Voltage Adaptable: Supports 380V/50Hz, 440V/60Hz, 480V/60Hz industrial voltages.
Small Islands & Coastal Sites: Independent supply for resorts, fishing villages, outposts.
Ships & Offshore Platforms: Drinking/domestic water for medium vessels and offshore facilities.
Industrial & Commercial Support: Process/auxiliary water for small factories, laundries, hotels.
Emergency & Field Operations: Rapidly deployable unit for temporary camps or disaster areas.
| Parameter | Specification |
| Fresh Water Capacity | 100 tons/day |
| System Recovery Rate | 35% |
| Salt Rejection Rate | ≥ 99.2% |
| Product Water TDS | < 700 ppm |
| Working Pressure | 3.5 – 5.5 MPa |
| Installed Power | 30 kW |
| Input Voltage | 380V/50Hz, 440V/60Hz, 480V/60Hz |
| Feed Water Quality | TDS ≤ 40,000 ppm, pH 3-10 |
| Operating Temperature | 5 – 45 °C |
| Dimensions | 5000 × 2000 × 1900 mm |
| Packed Dimensions (Case) | 5400 × 2300 × 2200 mm |
| Net Weight | Approx. 4,500 kg |
| Gross Weight (Packed) | Approx. 5,000 kg |
Fresh Water Output: 320 tons per day System recoveryrate:35% Power Consumption :75KW Voltage:380V/50HZ,440V/60HZ,480V/60HZ...
Fresh Water Output: 240 tons per day System recoveryrate:35% Power Consumption:52.5KW Voltage:380V/50HZ,440V/60HZ,480V/60HZ...
Fresh Water Output: 150 tons per day System recoveryrate:35% Power Consumption :37KW Voltage:380V/50HZ,440V/60HZ,480V/60HZ...
Fresh Water Output: 60 tons per day Size:L*B*H=2250mm*1250mm*2040mm Weight:≈ 2500kg (dry weight) Power...
Fresh Water Output: 60 tons per day Size:L*B*H=2250mm*1250mm*2040mm Weight:≈ 2500kg (dry weight) Power...

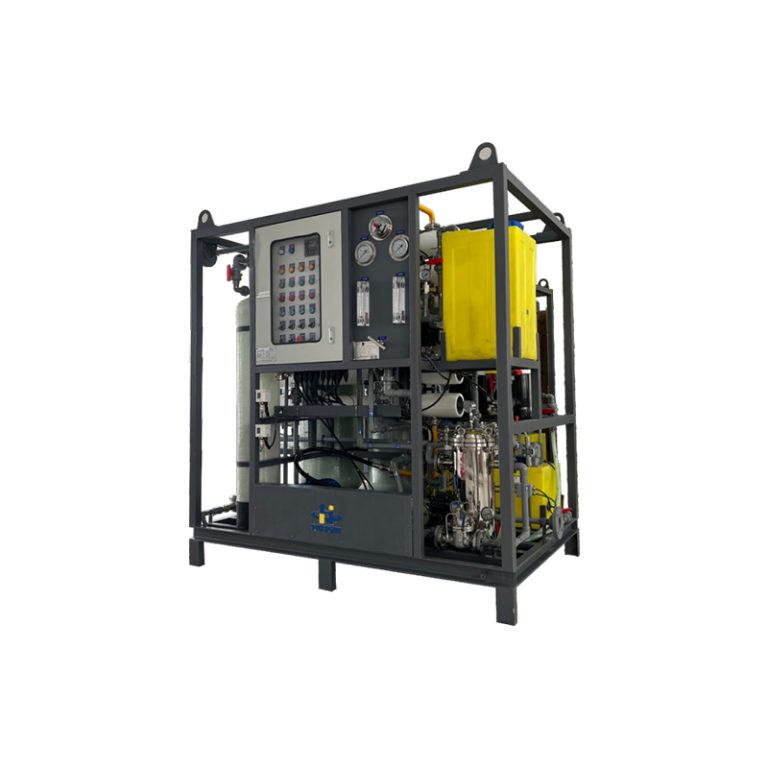

Fresh Water Output: 25 tons per day System recoveryrate:25% Power Consumption :5.5KW Voltage:440 V/60...
Fresh Water Output: 25 tons per day System recovery rate: 25% Power Consumption: 5.5KW Voltage: 440 V...
Main features: compact structure, generous; Easy to operate and maintain. Fresh Water Output: 5 tons...
Main features: small size, easy installation, convenient operation and maintenance. Fresh Water Output:...
Fresh Water Output: 0.5 tons per day System recovery rate:12% Power Consumption :0.75KW Voltage:single-phase220V/50HZ...
A: You receive comprehensive water treatment services including detailed system documentation, operator training, warranty coverage, and access to our technical support team. We also offer optional annual maintenance contracts for long-term industrial water system support.
A: We maintain strategic inventory of critical water treatment spare parts. For urgent needs, we expedite shipping to minimize your RO system maintenance downtime. Our support team manages parts identification and logistics.
A: We prioritize emergency cases. For critical issues halting operation, we provide initial response within 4-8 business hours and work relentlessly to resolve problems, leveraging remote diagnostics for water treatment maintenance.
A: Yes. We offer comprehensive training during water plant commissioning, covering normal operation, routine water treatment maintenance, and basic troubleshooting procedures.
A: Absolutely. Our systems feature modular design. We can reassess needs and provide retrofit solutions or capacity expansions through our water treatment services to adapt to changing conditions.
