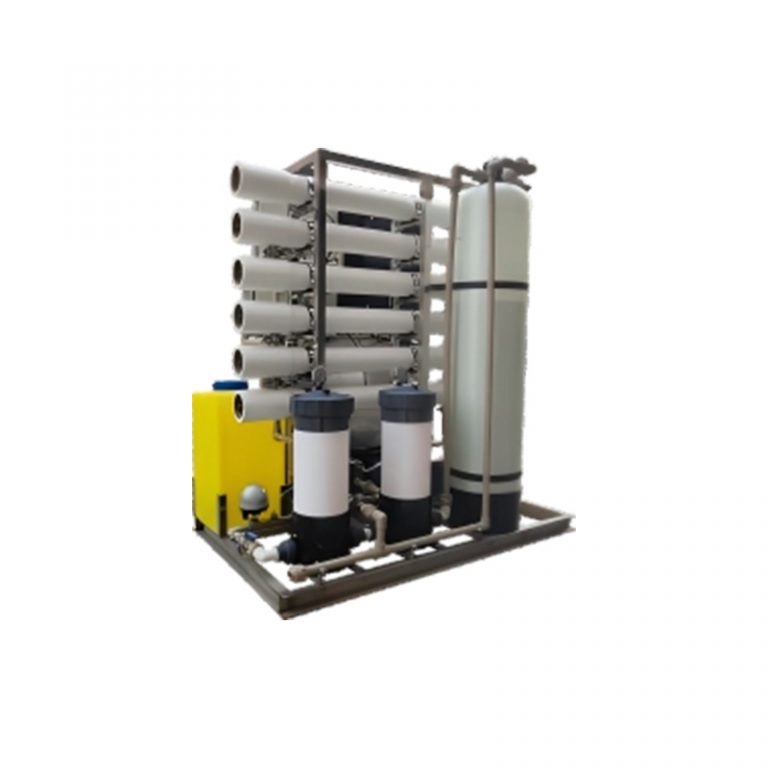

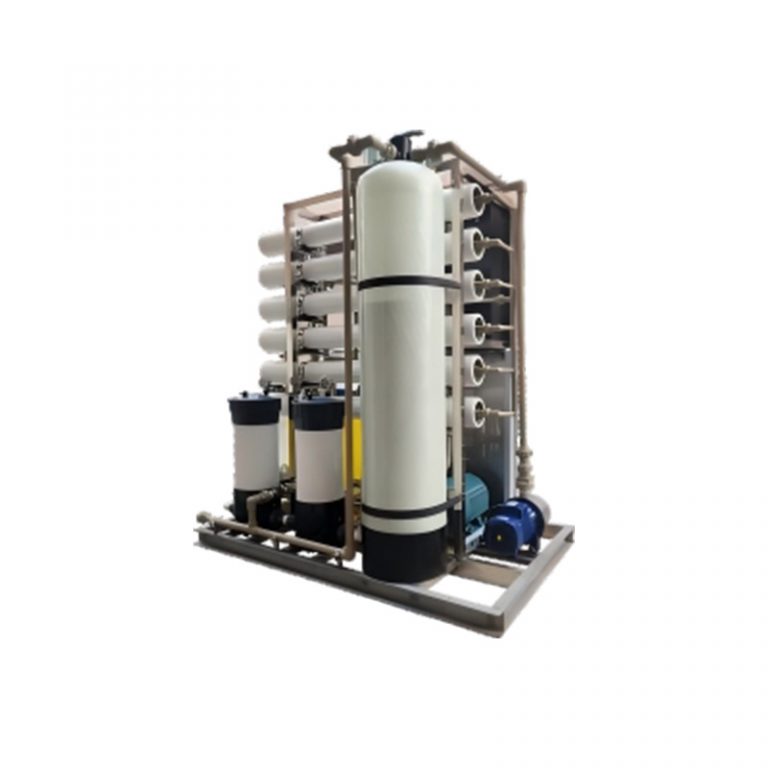

The FSHB 25A is a standard reverse osmosis system designed for small-scale freshwater needs. Built on a mature and stable technology platform, it delivers a reliable output of 25 tons per day with an ultra-low operating energy consumption of just 5.5 kW, providing an economical freshwater solution. The system features a highly integrated skid-mounted design, with a compact structure (1.7m x 1.12m x 1.9m), and maintains a stable desalination rate of 99.2%. It can effectively treat feedwater with a TDS of up to 40,000 ppm and produce high-quality freshwater with a TDS of less than 700 ppm.
As a classic A-series model, the FSHB 25A achieves a balance of operational efficiency and reliability with a 25% system recovery rate and standard 440V/60Hz industrial voltage configuration. Its design focuses on the stable performance of core functions, with easy installation and user-friendly maintenance. It is the ideal, cost-effective choice for small communities, vessels, commercial facilities, and independent project sites requiring a stable water source.
Standard & Reliable, Proven Over Time: Utilizes the mature design of the A series, ensuring stable operation and reliable performance. It is a high-cost-effective choice for meeting small-scale standard water supply needs.
Ultra-Energy-Efficient, Cost-Controlled: With a rated power consumption of just 5.5 kW, it significantly reduces daily operating electricity costs, making it especially suitable for cost-sensitive scenarios.
Compact Structure, Flexible Deployment: The integrated skid-mounted design has a small footprint, is lightweight, and is easy to transport, lift, and quickly install in limited spaces.
Excellent Water Quality, Stable Performance: The system maintains a high desalination rate of 99.2%, ensuring pure water quality. It operates stably within a wide temperature range of 5-45°C.
Global Voltage Compatibility: The standard configuration supports 440V/60Hz three-phase power supply, making it compatible with industrial power grids in most regions worldwide.
Small Islands and Communities: Provides independent drinking water sources for small villages, vacation homes, or workstations lacking municipal water supply.
Various Medium to Small Vessels: Meets the freshwater self-sufficiency needs of fishing boats, cargo ships, engineering vessels, and yachts.
Commercial & Light Industry: Suitable for the daily operational water needs of coastal restaurants, small hotels, laundromats, or light processing factories.
Mobile Camps & Construction Sites: Provides reliable logistical water support for construction camps, exploration bases, or activity camps in remote areas.
Emergency & Backup Water Supply: Serves as an emergency backup water supply device for communities, schools, or facilities facing short-term water shortages.
| Parameter | Specification |
| Freshwater Output | 25 Tons per Day |
| System Recovery Rate | 25% |
| Desalination Rate | ≥ 99.2% |
| Produced Water TDS | < 700 ppm |
| Operating Pressure | 3.5 – 5.5 MPa |
| Installed Power | 5.5 kW |
| Power Supply Requirement | 440V / 60Hz / Three-phase |
| Feedwater Requirements | TDS ≤ 40,000 ppm, pH 3-10 |
| Operating Temperature | 5 – 45°C |
| Equipment Dimensions (L×W×H) | 1700 × 1120 × 1900 mm |
| Packaging Dimensions | 1900 × 1320 × 2100 mm (Wooden Box) |
| Equipment Net Weight | Approximately 800 kg |
| Package Gross Weight | Approximately 880 kg |
Fresh Water Output: 320 tons per day System recoveryrate:35% Power Consumption :75KW Voltage:380V/50HZ,440V/60HZ,480V/60HZ...
Fresh Water Output: 240 tons per day System recoveryrate:35% Power Consumption:52.5KW Voltage:380V/50HZ,440V/60HZ,480V/60HZ...
Fresh Water Output: 150 tons per day System recoveryrate:35% Power Consumption :37KW Voltage:380V/50HZ,440V/60HZ,480V/60HZ...
Fresh Water Output: 100 tons per day System recoveryrate:35% Powerconsumption :30KW Voltage:380V/50HZ,440V/60HZ,480V/60HZ...
Fresh Water Output: 60 tons per day Size:L*B*H=2250mm*1250mm*2040mm Weight:≈ 2500kg (dry weight) Power...
Fresh Water Output: 50 tons per day System recovery rate:35% Power Consumption :18.5KW Voltage:380V/50HZ,440V/60HZ,480V/60HZ...
Fresh Water Output:10 tons per day Size: L*B*H=1520mm*800mm*1920mm Weight: ≈800Kg (dry weight) Power...
Main features: small size, easy installation, convenient operation and maintenance. Fresh Water Output:...
Fresh Water Output: 1.5 tons per day System recovery rate:12% Power Consumption :1.5KW Voltage:single-phase220V/50HZthree-phase...
Fresh Water Output: 0.5 tons per day System recovery rate:12% Power Consumption :0.75KW Voltage:single-phase220V/50HZ...
A: You receive comprehensive water treatment services including detailed system documentation, operator training, warranty coverage, and access to our technical support team. We also offer optional annual maintenance contracts for long-term industrial water system support.
A: We maintain strategic inventory of critical water treatment spare parts. For urgent needs, we expedite shipping to minimize your RO system maintenance downtime. Our support team manages parts identification and logistics.
A: We prioritize emergency cases. For critical issues halting operation, we provide initial response within 4-8 business hours and work relentlessly to resolve problems, leveraging remote diagnostics for water treatment maintenance.
A: Yes. We offer comprehensive training during water plant commissioning, covering normal operation, routine water treatment maintenance, and basic troubleshooting procedures.
A: Absolutely. Our systems feature modular design. We can reassess needs and provide retrofit solutions or capacity expansions through our water treatment services to adapt to changing conditions.
